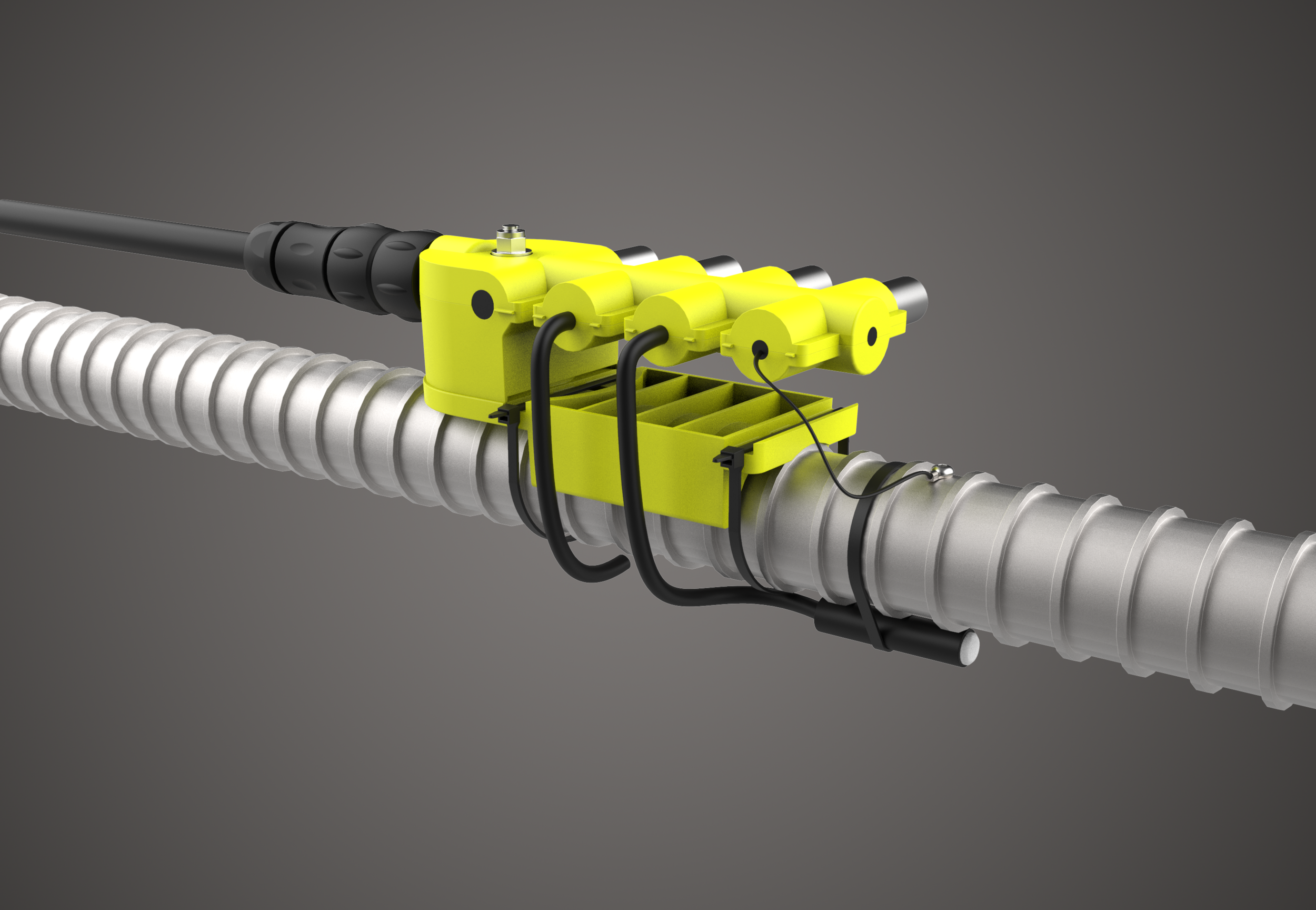

Corrosion Probe.

The BLCM Corrosion probe provides an early indication of corrosion events that may lead to degradation of structural integrity before it becomes a threat. The probe tracks chloride penetration and carbonation before it can affect the reinforcement of the structure.

• Monitors concrete structures for effects of chloride penetration and carbonation.

• Compact and easy to install

• Very long-life design.

Features

• Rebar Connection

• 4 Element ladder assembly, 16mm Ø with 28mm exposed section giving surface area of 1600 mm2 per element. Adjustable depth to suit most concrete covers from 20mm.

• Alkaline resistant body to ensure long life.

• Designed for use in concrete elements with up to 10m head of wet concrete during installation (e.g. columns, side walls etc) and/or constant submersion up to 30m of water.

• 8mm Ø PtTi element bar with active length of 260 mm.
